Optical-Morse

Problem Statement

Long distance communications can be achieved using several different solutions - usually via some form of radio device. We wanted to explore long range communications using light - specifically laser beams.

Contributors

  • Aaditya Borhade
  • Afiya
  • Prince Kushwaha
  • suzmak8-cloud
  • Swadhin Kumar Bhoi

Feature image

About Optical-Morse

Solution

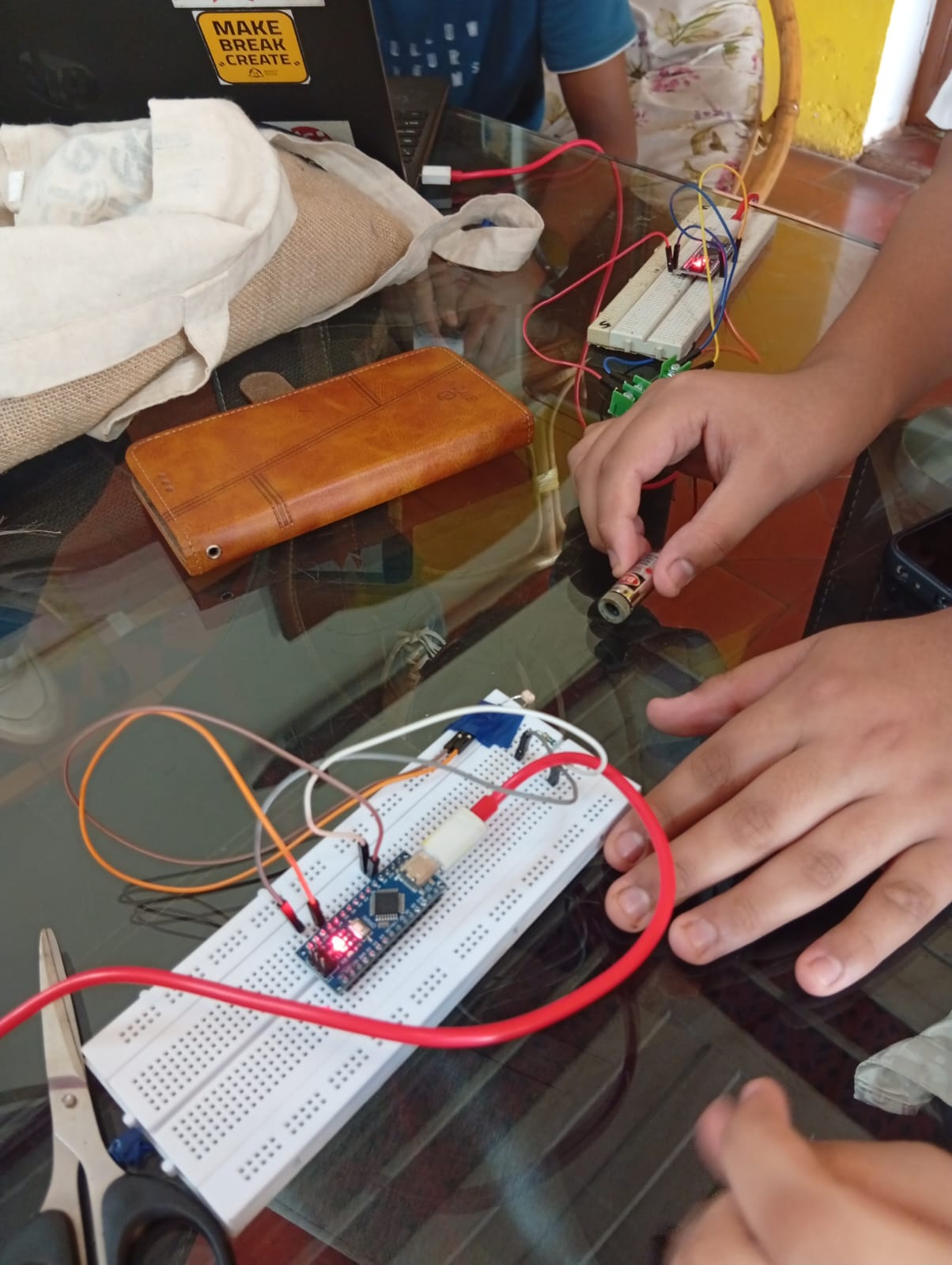

  We built a device to help communicate using simple lasers and LDR's which is not dependent on WiFi, Bluetooth or other radio technologies. We modulate a laser using morse code, which is interpreted on the receiving side using a LDR. Both sides have identical hardware - Arduino Nano for the microcontroller, a red laser, a LDR, and a mosfet module to modulate the lasers. Text is input via a serial monitor on the Arduino IDE, and on the receiving side it gets printed on the serial monitor as well. We built a simple tripod using 3d printed parts and PVC pipes to hold all the parts. For future iteration, we plan to add an I2C OLED display, some buttons and a 3d printable morse key so that the device can be used independently without attaching a laptop.

Additional Info

OSHWA License
